High Cycle Generator

High Cycle Generator Honda Powered

High Cycle Generator

Full Roll Cage Protection

Denver Vibrator's High Cycle (HC) Generator is a 3-Phase generator that produces the power needed to operate all high cycle vibrators requiring 3-phase, 180 Hertz, 230/115 volt electricity.  The gen-set features a brushless design using solid state components and will provide years of trouble-free service. Coupled to a powerful 9HP Honda engine and mounted onto a full roll cage, the Denver generator is engineered to perform even in the harshest conditions with minimal maintenance.  Made for the job site, the Denver HC generator features full roll cage protection and a convenient lifting eye.  The generator comes with dual outlets and can easily drive 2 of our largest 3.0" vibrator heads to a depths in excess of 100 feet.

Optional wheel kit available.

See also Select Cycle Power Converter and Kubota Diesel generators.

Specifications

  • Engine: 9hp Honda
  • Tank Capacity: 1.59 gallons
  • Run time at ½ load: 4 hours
  • Max Power Output: 4KW
  • Phase Output: 3-Phase only
  • Hertz: 180 Hz only
  • Number of Outlets: 2
  • Voltage: 230/115 Volt (Factory Setting is 230 volt)
  • Amp: 10/20
  • Net Weight: 142 lbs

High Cycle Generator User Manual

Wheel Kit Parts List

Generator Parts List

Safety Data Sheet

All Denver Concrete Vibrators come with a limited lifetime warranty against manufacturing defects.

Return to all high cycle power sources.



Posted on

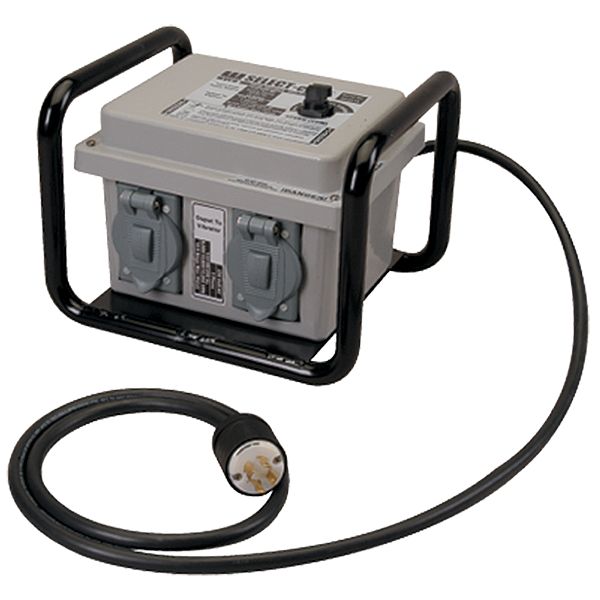

EZ Power 2 High Cycle Power Converter for Concrete Vibrators

Denver Concrete Vibrator’s EZ Power 2 high cycle converter technology allows users to power any of our standard high cycle vibrators by converting single-phase, 230-volt, 60 Hertz power into the 3-phase, 230-volt, 180 Hertz electricity required by our high cycle vibrators.  It can be used with either a generator or line power.   And, with 3 speed settings to choose from, the EZ Power 2 allows you to dial-in the vibrators’ performance to your application in order to achieve the maximum results.  Can be used with our 1.75″, 2.0″ or 2.5″ diameter high cycle vibrators.

Specifications

  • Input Power: Single-Phase, 230-Volt
  • Input Hertz: 60
  • Output Power: 3-Phase, 230 volt
  • Output Hertz:  133, 180 or 200
  • Output Vibrations per Minute (VPM) : 8,000, 10,800 or 12,000
  • Recommended Generator Size:  5,000 watts minimum
  • Number of Outlets: 2
  • Net Weight: 18 lbs
  • Not recommended for use with our 3.0″ diameter head





See also  High Cycle Generators.

Posted on

Diesel Powered High Cycle Generator

Only Denver Vibrator offers a  high cycle generator powered by a Kubota diesel engine.  Our high cycle generator is a 3-Phase generator that produces the power needed to operate all high cycle vibrators requiring 3-phase, 180 Hertz, 230/115 volt electricity.  The gen-set features a brushless design using solid state components and will provide years of trouble-free service. Coupled to a powerful Kubota 9.4 HP engine and mounted onto a full roll cage, the Denver generator is engineered to perform even in the harshest conditions with minimal maintenance.  Made for the job site, the Denver HC generator features full roll cage protection and a convenient lifting eye.  The generator comes with dual outlets and can easily drive 2 of our largest 3.0" vibrator heads to a depths in excess of 100 feet.

The Kubota diesel engine comes standard as an electric start only.  An optional manual start recoil assembly can be added for an additional charge.

Available with or without (standard) a wheel kit

  • Engine: Kubota Diesel
  • Horsepower: 9.4
  • Tank Capacity: 1.59 gallons
  • Run time at ½ load: 4 hours
  • Max Power Output: 4KW
  • Phase Output: 3-Phase only
  • Hertz: 180 Hz only
  • Number of Outlets: 2
  • Voltage: 230/115 Volt (Factory Setting is 230 volt)
  • Amp: 10/20
  • Net Weight: 182 lbs

Return to all high-cycle power sources

See also Honda High Cycle Generator and Select a Cycle Converter.
