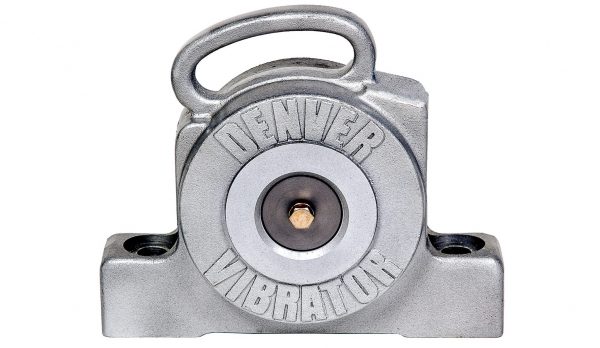

The DTV Series Turbine Concrete Form Vibrators are a perfect blend of performance and durability. When used externally on wet cast concrete forms, they provide consistent results on a wide range of form styles and concrete mixes. The DTV turbine vibrator can be operated in any position. They can be bolted directly to the application or easily moved from site to site by using a portable clamping bracket. Clamping brackets are available for both wood and metal form systems. Another great benefit is that the DTV series of concrete form vibrator does not require lubrication or filtered air.
In addition to being used for concrete consolidation, they are very effective at moving dry, powdery materials out of bins and hoppers.
They are:
- A Simple, Maintenance-Free Design
- Perfect for Concrete Consolidation
- Ideal Concrete Wall Vibrators
- More Efficient than Roller Vibrators
- Able to Operate in Any Position
- Designed to Function with Non-Lubricated Air
- Able to Perform Using Unfiltered Air
- Lightweight and Portable with a Built-In Handle.
- Constructed Using Cylindrical Roller Bearings for a Long Service Life
- Bolted to the Form or Used with Portable Brackets
- All Denver Concrete Vibrators come with a limited lifetime warranty against manufacturing defects.
Need help selecting the right vibrator? Please contact us by phone at 800.392.6703 or by email and let us help you choose the correct vibrator for your application.
Click for Dimensional Information.
DTV Turbine Vibrator Performance Data
| Air Pressure | 40 PSI | 60 PSI | 80 PSI | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Vibrator Model | Vibrations Per Minute | Air Consumption (CFM) | Force Output (Lbs) | Vibrations Per Minute | Air Consumption (CFM) | Force Output (Lbs) | Vibrations Per Minute | Air Consumption (CFM) | Force Output (Lbs) |
| DTV-1 | 11,000 | 30 | 1,263 | 13,000 | 40 | 1,764 | 14,000 | 50 | 2,046 |
| DTV-2 | 11,000 | 30 | 1,804 | 13,000 | 40 | 2,520 | 14,000 | 50 | 2,922 |
| DTV-3 | 11,000 | 30 | 2,577 | 13,000 | 40 | 3,600 | 14,000 | 50 | 4,175 |
See also Sizing and Using Turbine Concrete Form Vibrators and Dual Roller Vibrators
