High Cycle Generator

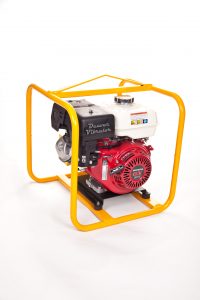

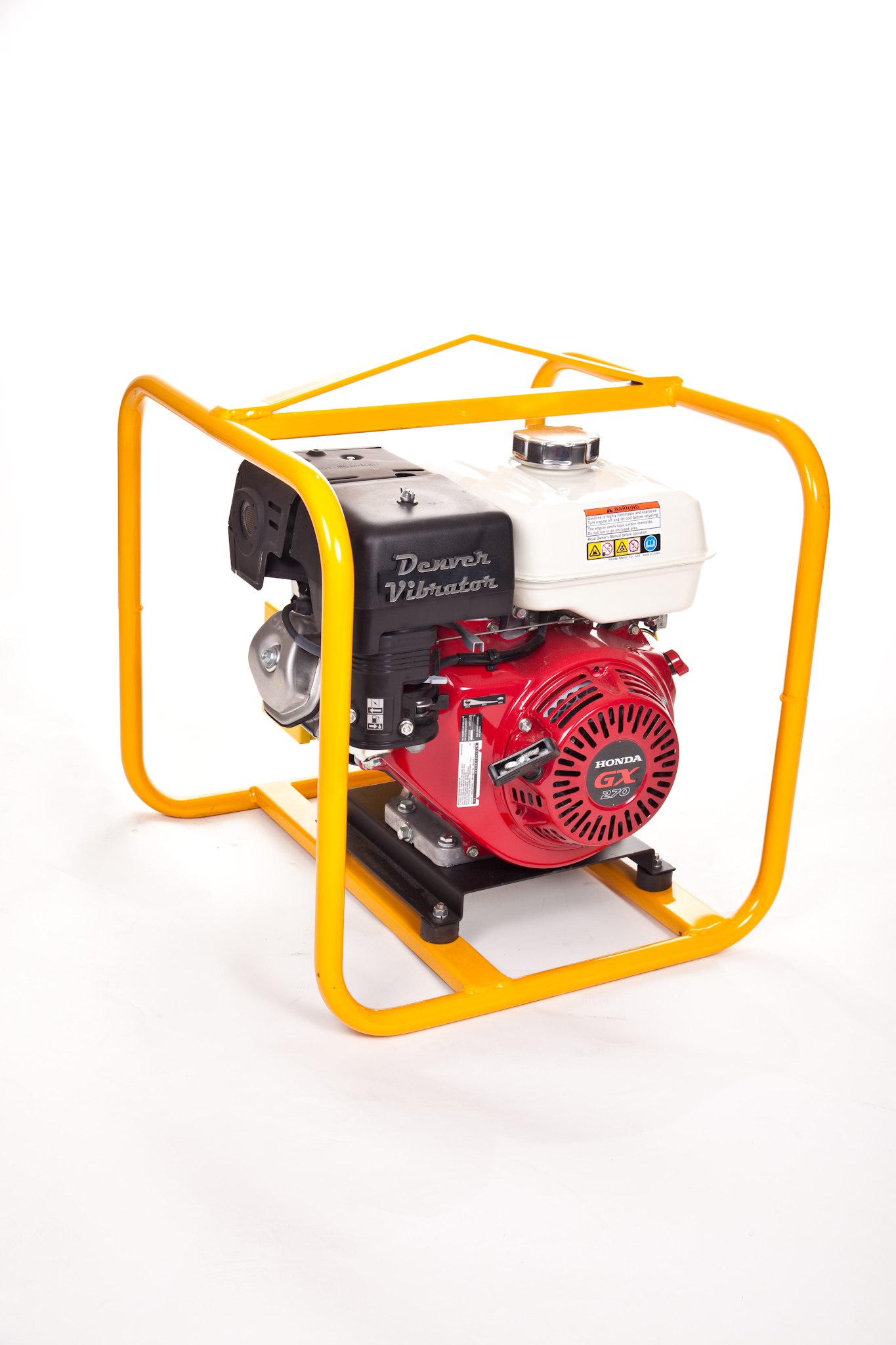

Denver Vibrator's High Cycle (HC) Generator is a 3-Phase generator that produces the power needed to operate all high cycle vibrators requiring 3-phase, 180 Hertz, 230/115 volt electricity. The gen-set features a brushless design using solid state components and will provide years of trouble-free service. Coupled to a powerful 9HP Honda engine and mounted onto a full roll cage, the Denver generator is engineered to perform even in the harshest conditions with minimal maintenance. Made for the job site, the Denver HC generator features full roll cage protection and a convenient lifting eye. The generator comes with dual outlets and can easily drive 2 of our largest 3.0" vibrator heads to a depths in excess of 100 feet.
Available with or without (standard) a wheel kit
See also Baldor Motor and Kubota Diesel generators.
Specifications
- Engine: 9hp Honda
- Tank Capacity: 1.59 gallons
- Run time at ½ load: 4 hours
- Max Power Output: 4KW
- Phase Output: 3-Phase only
- Hertz: 180 Hz only
- Number of Outlets: 2
- Voltage: 230/115 Volt (Factory Setting is 230 volt)
- Amp: 10/20
- Net Weight: 142 lbs
High Cycle Generator User Manual
All Denver Concrete Vibrators come with a limited lifetime warranty against manufacturing defects.
